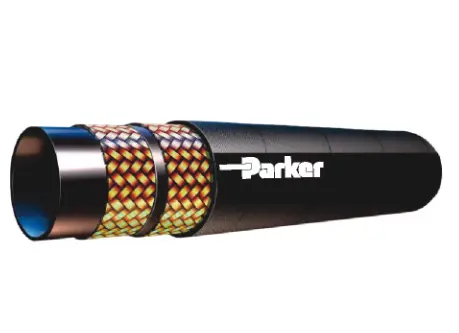

SH2PM-20PM-AV
DESCRIPTION:
Thermic steam hose meets IS 10655:1999 type 3 / BS 5342. The EPDM hose is with 16 bar working pressure and up to 205 deg C. The EPDM tube and cover is resistant to the HP steam and hot water applications.
TECHNICAL DESCRIPTION:
| Hose I.D. (inch): | 1.1/4 |
| Minimum Operating Temperature: | n/a |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Maximum Operating Temperature: | 205 °C |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Media: | Steam |
| Specifications Met: | BS 5342.0, IS 10655, Type 2 |
| Hose Reinforcement Material: | 2 Braids of Wire |
| Inside Diameter: | 31.8 mm |
| Outside Diameter: | 50 mm |
| Application: | Steam |
| Operating Temperature: | up to 205 °C |
| Maximum Operating Pressure: | 232 psi |
| Minimum Bend Radius: | 420 mm |
| Weight: | 1.8 kg/m |
