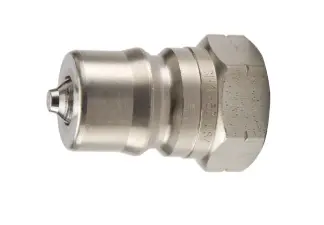

SH4-63
DESCRIPTION:
60 series 303 stainless steel nipple, ISO 7241-1 series B
TECHNICAL DESCRIPTION:
| Body Material: | Stainless Steel |
| Specifications Met: | ISO 7241-1 Series B |
| Coupling Half: | Male Nipple |
| Application: | General Purpose |
| Maximum Operating Temperature: | 250 °F, 121 °C |
| Product Type: | Manual Connect |
| Maximum Operating Pressure: | 5000 |
| Body Size (inch): | 1/2 |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Valve Type: | Poppet |
| Body Material: | 303 Stainless steel |
| Seal Material: | Nitrile |
| Flow Rate: | 45 L/min, 12 gal/min |
| Connection Type: | Female NPTF |
| Hex Size: | 1.12 inch |
| Connection Thread Size (inch): | 1/2 - 14 |
| Vacuum Pressure Rating: | 27.4 inch-Hg, -0.9 bar |
| Valve Material: | Stainless Steel 303 |
