SPHN24-24F
DESCRIPTION:

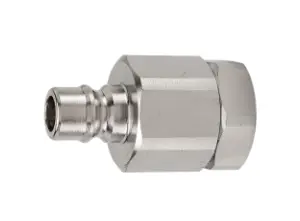

Snap-tite H series stainless steel nipple, unvalved
TECHNICAL DESCRIPTION:
| Body Material: | Stainless Steel |
| Coupling Half: | Male Nipple |
| Hex Size: | 2.13 inch |
| Maximum Operating Pressure: | 1500 |
| Application: | Hydraulic, General Purpose |
| Maximum Operating Temperature: | 250 °F |
| Valve Type: | Unvalved |
| Body Material: | 316 Stainless Steel |
| Product Type: | Manual Connect |
| Body Size (inch): | 1 1/2 |
| Minimum Operating Temperature: | -40 °F |
| Valve Type: | Unvalved |
| Connection Type: | Female NPT |
| Connection Thread Size (inch): | 1 1/2 - 11 1/2 |
| Seal Material: | Nitrile |
