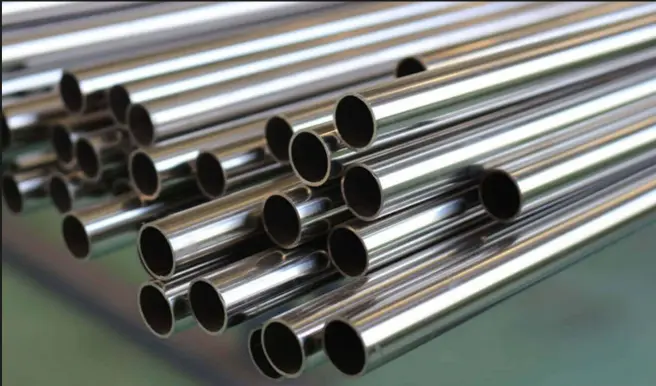

SS 316L TUBE OD 38.1X1.65 MM
DESCRIPTION:
SS 316L Tube OD 38.1 × 1.65 mm is a seamless or welded stainless steel tube manufactured from AISI 316L grade stainless steel, known for its excellent corrosion resistance, durability, and suitability for hygienic and corrosive service environments. The tube has an outside diameter (OD) of 38.1 mm and a wall thickness of 1.65 mm, making it suitable for process piping, food and beverage, pharmaceutical, chemical, and marine applications.
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Material Grade | Stainless Steel 316L |
| Material Standard | ASTM A269 / ASTM A312 (as applicable) |
| Product Type | Stainless Steel Tube |
| Outside Diameter (OD) | 38.1 mm (1.5 inch) |
| Wall Thickness | 1.65 mm |
| Approximate Inside Diameter (ID) | 34.8 mm |
| Material Composition | Austenitic Stainless Steel with Molybdenum |
| Corrosion Resistance | Excellent resistance to chlorides and chemical corrosion |
| Surface Finish | Mill Finish / Polished (as specified) |
| Manufacturing Type | Seamless or Welded |
| Density | 7.98 g/cm³ |
| Operating Temperature | Suitable for low and elevated temperature service |
| Weldability | Excellent |
| Typical Applications | Food Processing, Pharmaceutical, Chemical Plants, Dairy, Water Treatment, Marine Equipment |
| Key Feature | Low Carbon Content (L Grade) minimizes carbide precipitation during welding |
