SSH8-62
DESCRIPTION:

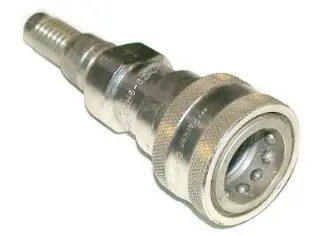

Parker SSH8-62 is a stainless steel hydraulic quick disconnect coupler from Parker's 60 Series. It is designed for fast connection and disconnection of hydraulic, fluid, gas, and steam lines while minimizing fluid loss and contamination. It complies with ISO 7241-1 Series B interchange standards.
TECHNICAL DESCRIPTION:
| Manufacturer | Parker Hannifin |
| Model | SSH8-62 |
| Series | 60 Series Quick Couplings |
| Coupling Type | Female hydraulic quick disconnect coupler |
| Standard | ISO 7241-1 Series B Interchange |
| Body Material | 316 Stainless Steel |
| Valve Type | Double Shut-Off Poppet Valve |
| Connection Type | Female NPTF Thread |
| Body Size | 1 in. |
| Thread Size | 1"-11½ NPTF Female |
| Seal Material | Fluorocarbon (FKM) |
| Locking Mechanism | Stainless Steel Locking Balls |
| Sleeve Type | Manual Sleeve |
| Maximum Working Pressure | Up to 3,000 psi (204 bar) |
| Flow Capacity | 50 GPM (189 L/min) |
| Typical Applications | Hydraulic circuits, chemical processing, industrial fluid transfer, water/coolant lines, steam service, and general industrial systems |
| Key Features | Corrosion resistant 316 SS construction, ISO interchangeability, low fluid loss, reliable sealing, quick connection/disconnection capability |
