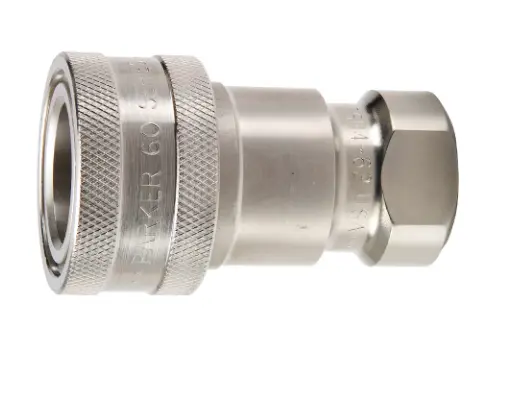

SSH8-62Y
DESCRIPTION:
60 series 316 stainless steel coupler
TECHNICAL DESCRIPTION:
| Body Material: | Stainless Steel |
| Specifications Met: | ISO 7241-1 Series B |
| Coupling Half: | Female Coupler |
| Application: | General Purpose |
| Maximum Operating Temperature: | 204 °C, 400 °F |
| Maximum Operating Pressure: | 3000 |
| Product Type: | Manual Connect |
| Body Size (inch): | 1 |
| Minimum Operating Temperature: | -26 °C, -15 °F |
| Valve Type: | Poppet |
| Body Material: | 316 Stainless steel |
| Seal Material: | Fluorocarbon |
| Flow Rate: | 50 gal/min, 189 L/min |
| Hex Size: | 1.62 inch |
| Connection Type: | Female NPT |
| Connection Thread Size (inch): | 1 - 11-1/2 |
| Vacuum Pressure Rating: | 27.4 inch-Hg, -0.9 bar |
| Ball Material: | Stainless Steel |
| Valve Material: | Stainless Steel 316 |
| Plating Type: | n/a |
