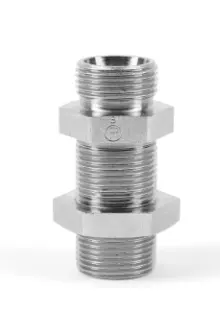

SV10LOMDCF
DESCRIPTION:
The main function of Ermeto DIN tube to tube high pressure hydraulic tube fittings is to connect different numbers of tubes. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Product Style: | Bulkhead |
| Body Material: | Steel |
| Accessories Included: | n/a |
| Connection 2 Size: | 10 mm (O.D.) |
| Connection 1 Size: | 10 mm (O.D.) |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Shape: | Straight |
| Connection 1 Type: | Male 24° Cone |
| Technology: | Fluid & Gas Handling |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male 24° Cone |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Bulkhead |
| Product Series: | EO Light |
| Configuration: | Tube to Tube |
| Maximum Operating Pressure: | 500 bar |
| Shape: | Straight |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 10 mm Tube O.D. |
| Connection 2 Type: | Male, 24° Cone |
| Connection 2 Size: | 10 mm Tube O.D. |
| Specifications Met: | DIN, ISO 8434 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Accessories Included: | n/a |
| Body Material: | Steel |
| Seal Type: | Sealing Edge |
| Seal Material: | n/a |
| Maximum Ambient Temperature: | 300 °C, 572 °F |
| Minimum Ambient Temperature: | -40 °C, -40 °F |
| Maximum Fluid Temperature: | 300 °C, 572 °F |
| Minimum Fluid Temperature: | -40 °C, -40 °F |
