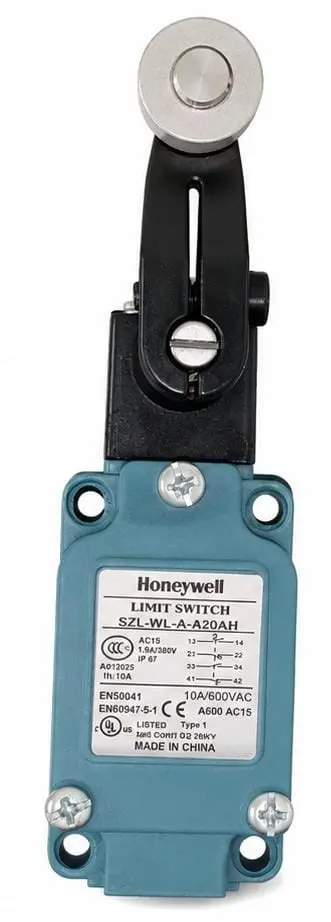

SZL-WL-A-A20AH
DESCRIPTION:
The Honeywell SZL-WL-A-A20AH is a member of the MICRO SWITCH SZL-WL Series of general-purpose industrial limit switches. The suffix A20AH identifies the specific actuator and configuration within the series.
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | SZL-WL-A-A20AH |
| Standard | EN50041 |
| Enclosure | Metal |
| Electrical Rating | AC 15 A600 DC 13 Q300 |
| COO | China |
| Shock/ Vibration | 10g/ 50g |
| Operating Humidity | <95% RH |
| Operating Temperature | -25~+120°C |
| Mechanical life | 10,000,000 operations |
| Operating Speed | 0.05mm~2m/s |
| Operating Frequency | 120 ops/min |
| Contact Resistance | <25mΩ |
| Degree Of Protection | IP67 |
| Dielectric Strength | 2500V |
| Electrical Life | 5 x 105 |
