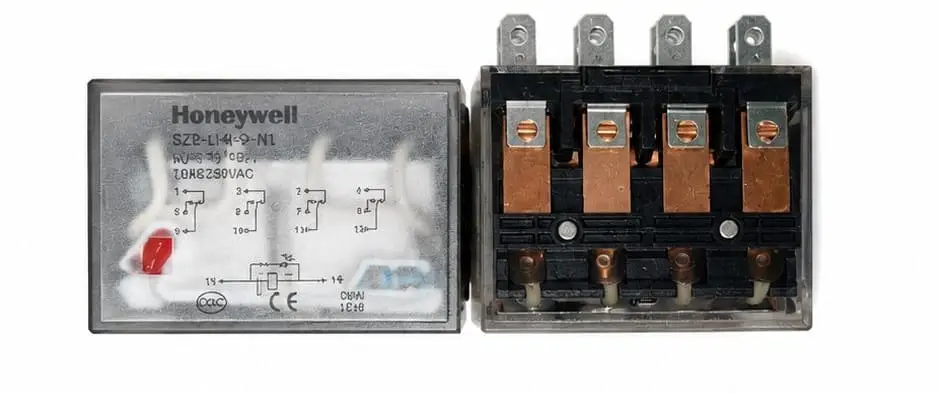

SZR-LY4-S-N1 AC110/120V
DESCRIPTION:
SZR LY Series general-purpose power relays are designed for a wide range of applications including power as well as logic control for factory machines and control panels.
TECHNICAL DESCRIPTION:
| Current Rating | 10 A |
| Contact(s) | 4PDT |
| Terminal | Solder/Plug-In |
| Options | LED Indicator |
| Resistive Load | 110 V, 10 A |
| Inductive Load | 110 V, 7.5 A |
| Switching (Resistive Load) | 1100 VA |
| Switching (Inductive Load) | 825 VA |
| Contact Rating | 250 Vac |
| Coil Input Voltage | 110/120 Vac |
| Rated Current at 50 Hz | 17 mA/19 mA |
| Rated Current at 60 Hz | 18 mA/16.4 mA |
| Coil Resistance | 2200 ohms |
| Power Consumption | 0.9 W to 1.1 W |
| Dropout Voltage (% of Rated Voltage) | 30 % min. |
| Pick-Up Voltage (Must Operate) | 80 % max. of the Rated Coil Voltage |
| Voltage | 110 % of the rated coil voltage |
| Operating Voltage | 80 % of the rated coil voltage |
| Operate Time | 25 ms max. |
| Release Time | 25 ms. max |
| Ambient Temperature | -25 °C to 70 °C [-13 °F to 158 °F] |
| Ambient Humidity | 45 % RH to 85 % RH |
| Contact Material | Silver Cadium Oxide |
| Contact Resistance | 50 mOhm max. |
| Operating Frequency (Mechanical) | 18,000 Operations/Hour |
| Operating Frequency (Electrical) | 1800 Operations/Hour |
| Vibration Resistance | 10 Hz to 55 Hz at Double Amplitude of 1.0 mm |
| Shock Resistance | 1000 m/s2 (Approx. 100 G) |
| Weight | 35 g [1.24 oz] |
| Agency Approvals and Standards | UL, CE |
| UL File # | E#150950 |
| Expected Mechanical Life | ac - 50 Million Operations min. |
