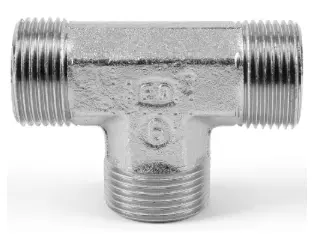

T08LCF-AV
DESCRIPTION:
EO-PSR fittings produce high pressure, leak-free tube connections and components in hydraulic systems. The main feature of EO-PSR (acc. DIN 3861, DIN 2353) is the controlled progressive bite into the tube, due to a unique geometry.
Technical Specifications
| Product Style: | Union |
| Connection 2 Size: | 8 mm (O.D.) |
| Connection 1 Size: | 8 mm (O.D.) |
| Connection 3 Size: | 8 mm (O.D.) |
| Body Material: | Steel |
| Accessories Included: | Pre-assembled with Nut and EO-PSR Cutting Ring |
| Shape: | Tee |
| Division: | High Pressure Connectors Europe Division |
| Technology: | Fluid & Gas Handling |
| Connection 1 Type: | Male 24° Cone |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male 24° Cone |
| Connection 3 Type: | Male 24° Cone |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Shape: | Union, Union Tee |
| Product Series: | EO Light |
| Configuration: | Tube to Tube |
| Maximum Operating Pressure: | 500 bar |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 8 mm Tube O.D. |
| Connection 2 Type: | Male, 24° Cone |
| Connection 2 Size: | 8 mm Tube O.D. |
| Connection 3 Type: | Male, 24° Cone |
| Connection 3 Size: | 8 mm Tube O.D. |
| Specifications Met: | DIN, ISO 8434 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Accessories Included: | Pre-assembled with Nut and EO-PSR Cutting Ring |
| Body Material: | Steel |
| Seal Type: | Sealing Edge |
| Seal Material: | n/a |
| Maximum Ambient Temperature: | 300 °C, 572 °F |
| Minimum Ambient Temperature: | -40 °C, -40 °F |
| Maximum Fluid Temperature: | 300 °C, 572 °F |
| Minimum Fluid Temperature: | -40 °C, -40 °F |
