T13-B4020MU058-36
DESCRIPTION:

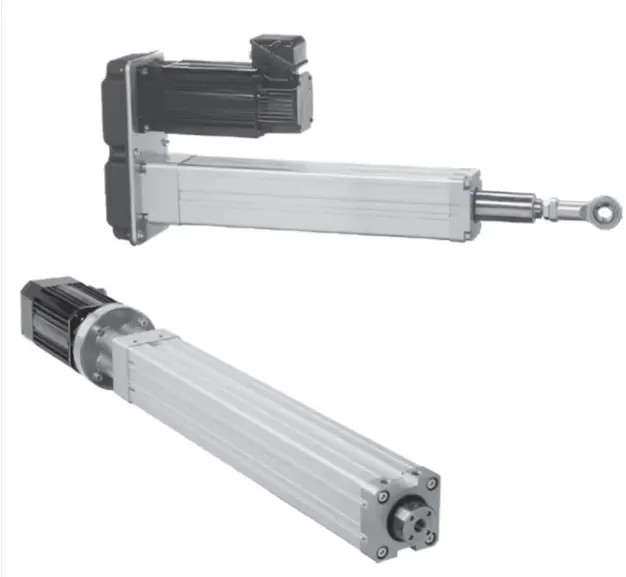

A high-precision electric linear actuator from the Thomson T-Series, designed for demanding industrial motion control applications. It features a ball screw drive, direct inline drive configuration, and rugged anodized aluminum construction, delivering high load capacity, accurate positioning, and reliable continuous-duty operation for automation, material handling, packaging, and machine tools
TECHNICAL DESRIPTION:
| Load Capacity | 30000 N |
| Material | Aluminium |
| Stroke Length | 260mm |
| Rated Voltage | 400 V AC |
| Speed At Rated Load | 1 m/s |
| Speed At Full Load | 1 m/s (1,000 mm/s) |
| Duty Cycle | 100% |
| Mounting Type | Standard Mounting |
| Rated Load | 300Nm |
| Device Type | Rod Style |
| Valve Motion | Linear Motion Valve |
| Color | Silver |
| Model Name/Number | T13-B4020MU058-36 |
| Degree Of Protection | IP65 |
| Weight | 27kg |
| Brand | Thomson |
| Drive System | Ball screw drive |
| Operating Speed Range | 1m/s |
| Retracted Length | 700mm |
