VHC8-8FV
DESCRIPTION:

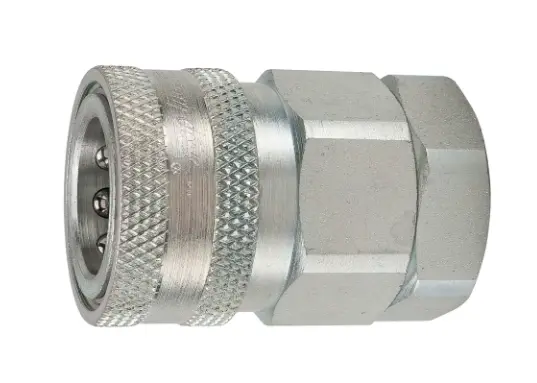

Snap-tite H series steel coupler, valved
TECHNICAL DESCRIPTION:
| Body Material: | Steel |
| Hex Size: | 1.25 inch |
| Coupling Half: | Female Coupler |
| Application: | Hydraulics, General Purpose |
| Maximum Operating Pressure: | 4000 |
| Maximum Operating Temperature: | 400 °F |
| Valve Type: | Poppet |
| Body Material: | Steel |
| Product Type: | Manual Connect |
| Body Size (inch): | 1/2 |
| Minimum Operating Temperature: | -15 °F |
| Connection Type: | Female NPTF |
| Valve Type: | Poppet |
| Connection Thread Size (inch): | 1/2 - 14 |
| Seal Material: | Fluorocarbon |
| Plating Type: | Zinc with Clear Trivalent Chromate |
