VHN4-4EM
DESCRIPTION:

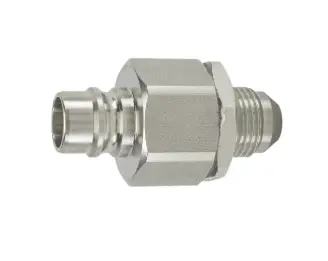

Snap-tite H series steel nipple, valved
TECHNICAL DESCRIPTION:
| Body Material: | Steel |
| Hex Size: | 0.88 inch |
| Coupling Half: | Male Nipple |
| Application: | Hydraulic, General Purpose |
| Maximum Operating Pressure: | 6500 |
| Maximum Operating Temperature: | 250 °F |
| Valve Type: | Poppet |
| Product Type: | Manual Connect |
| Body Material: | Steel |
| Body Size (inch): | 1/4 |
| Minimum Operating Temperature: | -40 °F |
| Connection Type: | Male SAE 37 degree flare |
| Valve Type: | Poppet |
| Connection Thread Size (inch): | 7/16 - 20 |
| Seal Material: | Nitrile |
| Plating Type: | Zinc with clear trivalent chromate |
