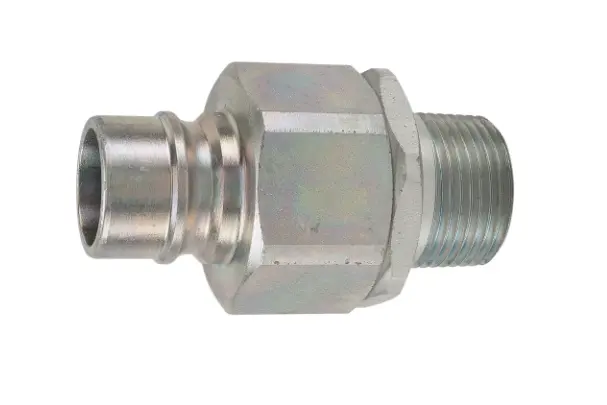

VHN4-4MV
DESCRIPTION:
Snap-tite H series steel nipple, valved
TECHNICAL DESCRIPTION:
| Body Material: | Steel |
| Coupling Half: | Male Nipple |
| Hex Size: | 0.88 inch |
| Application: | Hydraulics, General Purpose |
| Maximum Operating Pressure: | 6500 |
| Maximum Operating Temperature: | 400 °F |
| Valve Type: | Poppet |
| Body Material: | Steel |
| Product Type: | Manual Connect |
| Body Size (inch): | 1/4 |
| Minimum Operating Temperature: | -15 °F |
| Valve Type: | Poppet |
| Connection Type: | Male NPT |
| Connection Thread Size (inch): | 1/4 - 18 |
| Seal Material: | Fluorocarbon |
| Plating Type: | Zinc with Clear Trivalent Chromate |
