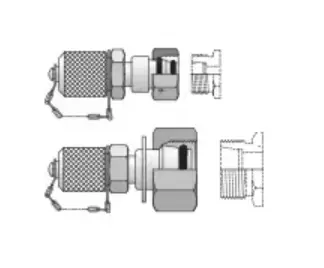

VKA3/25SCF
DESCRIPTION:
Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.
TECHNICAL DESCRIPTION:
| O-Ring Material: | NBR |
| Body Material: | Steel |
| Connection Type: | EO Diagnostic Swivels |
| Connection 3 Thread Size (inch): | na |
| Connection 2 Thread Size (inch): | na |
| Maximum Static Pressure: | 9100 psi |
| Maximum Dynamic Pressure: | 5800 psi |
| Connection 3 Thread Size (mm): | na |
| Connection 2 Thread Size (mm): | M16X2 |
| Connection 2 Style: | M16 Test Point Connector |
| Connection 1 Tube O.D. (mm): | 25S |
| Connection 3 Style: | na |
| Connection 2 Tube O.D. (mm): | na |
| Connection 1 Tube O.D. (inch): | na |
| Connection 2 Tube O.D. (inch): | na |
| Body Material: | Steel |
| Connection 1 Style: | Male 24° Metric Flareless Swivel |
