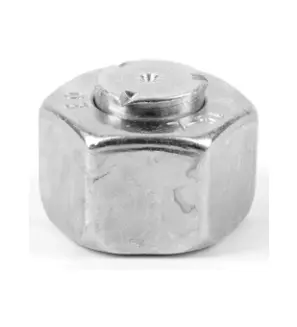

VKAM25SCF
DESCRIPTION:
The main function of plugs for Ermeto DIN high pressure hydraulic fittings is the safe closure of ports in hydraulic systems. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DSECRIPTION:
| Body Material: | Steel |
| Product Style: | Blanking Plug for Cones, with Nut |
| Seal Material: | NBR |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Connection Type: | Male 24° Cone (with O-Ring) |
| Technology: | Fluid & Gas Handling |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection Size: | 25 mm (O.D.) |
| Application: | Industrial, Hydraulics |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Blanking Plug, For Cones, with Nut |
| Product Series: | EO Heavy |
| Maximum Operating Pressure: | 420 bar |
| Connection Type: | Male, 24° Cone (with O-Ring) |
| Connection Size: | 25 mm Tube O.D. |
| Specifications Met: | DIN, ISO 8434 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Body Material: | Steel |
| Seal Type: | O-Ring |
| Seal Material: | NBR |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Maximum Fluid Temperature: | 100 °C, 212 °F |
