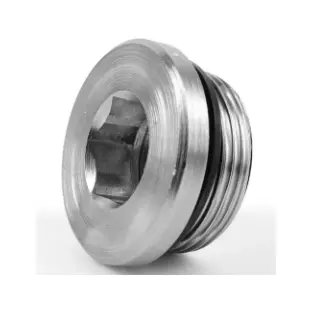

VSTI10X1EDCF
DESCRIPTION:
The main function of plugs for Ermeto DIN high pressure hydraulic fittings is the safe closure of ports in hydraulic systems. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Body Material: | Steel |
| Product Style: | Blanking Plug for Ports |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Technology: | Fluid & Gas Handling |
| Connection Type: | Male Metric |
| Connection Size: | M10x1.0 |
| Product Type: | Hydraulic DIN Fittings |
| Product Series: | n/a |
| Configuration: | n/a |
| Maximum Operating Pressure: | 400 bar |
| Shape: | n/a |
| Connection Type: | Male, Metric |
| Connection Size: | M10x1.0 mm Thread |
| Specifications Met: | DIN, ISO 8434, ISO 9974 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Accessories Included: | n/a |
| Body Material: | Steel |
| Seal Type: | ED Seal |
| Seal Material: | NBR |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Minimum Ambient Temperature: | -40 °C, -40 °F |
| Maximum Fluid Temperature: | 100 °C, 212 °F |
| Minimum Fluid Temperature: | -35 °C, -31 °F |
