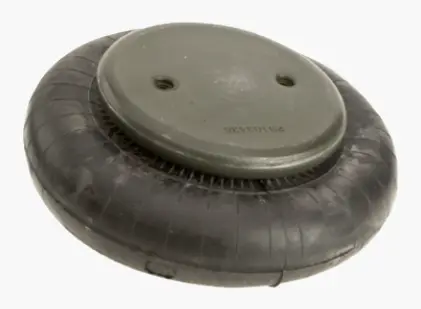

W013580131-I

Maximum Diameter @ 100 PSIG (inches)

6.5

Maximum Height (inches)

4.1

Maximum Stroke (inches)

2.1

Minimum Usable Height (inches)

2

Force @ 80PSI at Stroke of 1 Inch (pounds)

1350

Force @ 80PSI at Stroke of Maximum Stroke (pounds)

850

Material

2-Ply Standard Cord

Design Height

3.5

Load (at Design Height) at: 40 psig (pounds)

550

Load (at Design Height) at: 60 psig (pounds)

850

Load (at Design Height) at: 80 psig (pounds)

1170

Natural Frequency (@80 psig) (cpm)

181

% of Isolation at Forced Frequency 400 CPM

74.4

% of Isolation at Forced Frequency 800 CPM

94.6

% of Isolation at Forced Frequency 1500 CPM

98.5
