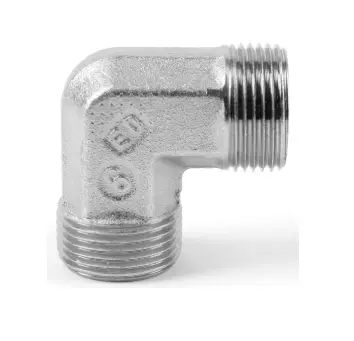

W12L71
DESCRIPTION:
Stainless steel fittings with progressive ring DPR produce high pressure, leak-free tube connections and components in hydraulic systems. The main feature is the controlled progressive bite into the tube, due to a unique geometry.
TECHNICAL DESCRIPTION:
| Body Material: | Stainless Steel |
| Product Style: | Union |
| Connection 2 Size: | 12 mm (O.D.) |
| Connection 1 Size: | 12 mm (O.D.) |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Shape: | Elbow 90° |
| Connection 1 Type: | Male 24° Cone |
| Technology: | Fluid & Gas Handling |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male 24° Cone |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Shape: | Union, Elbow 90° |
| Configuration: | Tube to Tube |
| Maximum Operating Pressure: | 315 bar |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 12 mm Tube O.D. |
| Connection 2 Type: | Male, 24° Cone |
| Connection 2 Size: | 12 mm Tube O.D. |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Body Material: | Stainless Steel |
| Maximum Ambient Temperature: | 400 °C, 752 °F |
| Maximum Fluid Temperature: | 400 °C, 752 °F |
