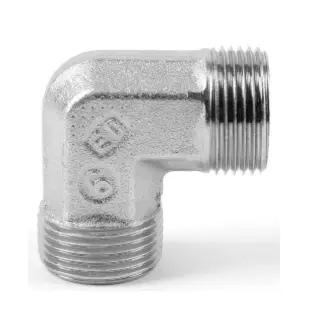

W16SCFX
DESCRIPTION:
The main function of Ermeto DIN tube to tube high pressure hydraulic tube fittings is to connect different numbers of tubes. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Body Material: | Steel |
| Connection 2 Size: | 16 mm (O.D.) |
| Product Style: | Union |
| Connection 1 Size: | 16 mm (O.D.) |
| Brand: | Ermeto |
| Shape: | Elbow 90° |
| Division: | High Pressure Connectors Europe Division |
| Connection 1 Type: | Male 24° Cone |
| Technology: | Fluid & Gas Handling |
| Connection 2 Type: | Male 24° Cone |
| Product Type: | Hydraulic DIN Fittings |
| Shape: | Union, Elbow 90° |
| Product Series: | EO Heavy |
| Configuration: | Tube to Tube |
| Maximum Operating Pressure: | 630 bar |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 16 mm Tube O.D. |
| Connection 2 Type: | Male, 24° Cone |
| Connection 2 Size: | 16 mm Tube O.D. |
| Body Material: | Steel |
| Maximum Ambient Temperature: | 300 °C, 572 °F |
| Maximum Fluid Temperature: | 300 °C, 572 °F |
