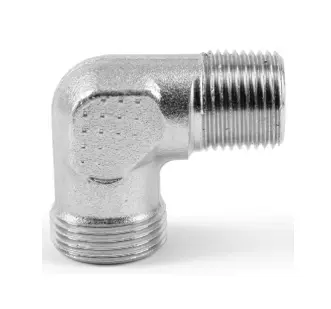

WE08SRCF
DESCRIPTION:
EO-PSR fittings produce high pressure, leak-free tube connections and components in hydraulic systems. The main feature of EO-PSR (acc. DIN 3861, DIN 2353) is the controlled progressive bite into the tube, due to a unique geometry.
TECHNICAL DESCRIPTION:
| Connection 1 Size: | 8 mm (O.D.) |
| Body Material: | Steel |
| Connection 2 Size: | R 1/4 |
| Brand: | Ermeto |
| Shape: | Elbow 90° |
| Connection 1 Type: | Male 24° Cone |
| Technology: | Fluid & Gas Handling |
| Connection 2 Type: | Male BSPT - Taper |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging |
| Product Style: | Stud Fitting |
| Configuration: | Tube to Port |
| Maximum Operating Pressure: | 400 bar |
| Shape: | Elbow 90° |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 8 mm Tube O.D. |
| Connection 2 Type: | Male, BSPT - Taper |
| Connection 2 Size: | R 1/4 inch Thread |
| Body Material: | Steel |
| Seal Material: | Metal |
| Maximum Ambient Temperature: | 300 °C, 572 °F |
| Maximum Fluid Temperature: | 300 °C, 572 °F |
