WHK12SRCSOMDCF
DESCRIPTION:

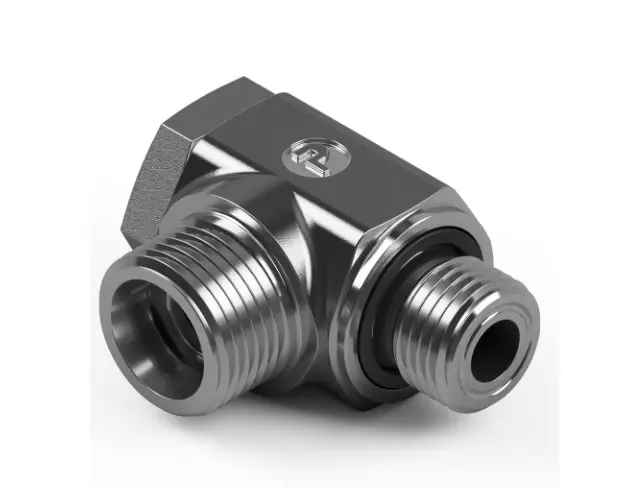

The main function of Ermeto DIN banjo fittings is to connect different numbers of tubes or hoses. This broad range of DIN fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
Connection 1 Size: | 12 mm (O.D.) |
| Seal Type: | Soft Seal |
| Accessories Included: | n/a |
| Body Material: | Steel |
| Connection 2 Size: | G 3/8 A |
| Product Series: | EO Heavy |
| Brand: | Ermeto |
| Shape: | Elbow 90° |
| Division: | High Pressure Connectors Europe Division |
| Connection 1 Type: | Male 24° Cone |
| Technology: | Fluid & Gas Handling |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male BSPP |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Banjo |
| Product Series: | EO Heavy |
| Configuration: | Tube to Port |
| Maximum Operating Pressure: | 420 bar |
| Shape: | Elbow 90° |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 12 mm Tube O.D. |
| Connection 2 Type: | Male, BSPP |
| Connection 2 Size: | G 3/8 A inch Thread |
| Specifications Met: | DIN, ISO 8434 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Accessories Included: | n/a |
| Body Material: | Steel |
| Seal Type: | Soft Seal |
| Seal Material: | NBR (Eolastic) |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Minimum Ambient Temperature: | -40 °C, -40 °F |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
| Minimum Fluid Temperature: | -40 °C, -40 °F |
