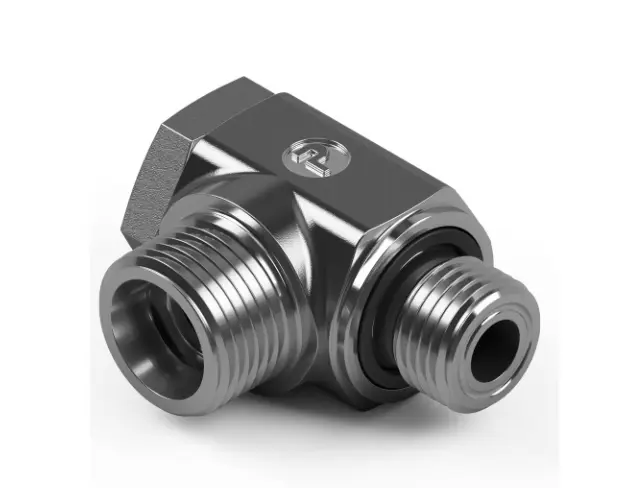

WHK18ZLRCSCF
DESCRIPTION:
The feature of EO-2 fittings is elastomeric seals on all joints. It assures leak free operation without retightening. EO-2 is designed for metric tube, based on German standards DIN 3861, DIN 2353, now represented by international standard ISO 8434-1.
TECHNICAL DESCRIPTION:
| Body Material: | Steel |
| Connection 2 Size: | G 1/2 A |
| Connection 1 Size: | 18 mm (O.D.) |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Shape: | Elbow 90° |
| Connection 1 Type: | Male 24° Cone |
| Technology: | Fluid & Gas Handling |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male BSPP |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Banjo |
| Product Series: | EO Light |
| Configuration: | Tube to Port |
| Maximum Operating Pressure: | 350 bar |
| Shape: | Elbow 90° |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 18 mm Tube O.D. |
| Connection 2 Type: | Male, BSPP |
| Connection 2 Size: | G 1/2 A inch Thread |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Body Material: | Steel |
| Seal Type: | Soft Seal |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
