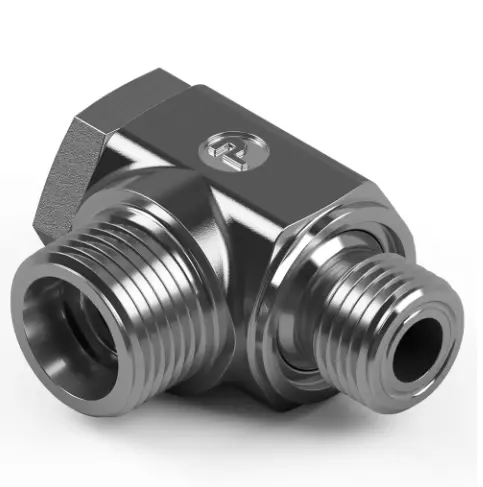

WHK20SRCF
DESCRIPTION:
EO-PSR fittings produce high pressure, leak free connection of tubes and components in hydraulic systems. The basic function of EO-PSR is the controlled progressive bite of the EO-PSR into the tube due to a unique intenal geometry.
TECHNICAL DESCRIPTION:
| Connection 2 Size: | G 3/4 A |
| Body Material: | Steel |
| Connection 1 Size: | 20 mm (O.D.) |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Shape: | Elbow 90° |
| Technology: | Fluid & Gas Handling |
| Connection 1 Type: | Male 24° Cone |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male BSPP |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Banjo |
| Configuration: | Tube to Port |
| Maximum Operating Pressure: | 160 bar |
| Shape: | Elbow 90° |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 20 mm Tube O.D. |
| Connection 2 Type: | Male, BSPP |
| Connection 2 Size: | G 3/4 A inch Thread |
| Specifications Met: | DIN, ISO 8434 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Body Material: | Steel |
| Seal Type: | Sealing Ring |
| Seal Material: | Metal |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
