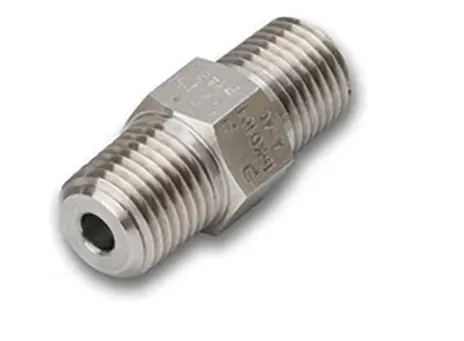

YA01-8-6C-AV
DESCRIPTION:
Parker's stainless steel NPT adapters have working pressure ratings from 10,000 psi to 15,000 psi, depending on size.
TECHNICAL DESCRIPTION:
| Connection 2 Type: | NPT, Male, NPT Thread |
| Connection 1 Type: | Male, Type "M", UNF Thread |
| Connection 1 Thread Size: | 3/4"-16 UNF |
| Shape: | Straight |
| Connection 1 Type: | Male Type "M" |
| Connection 2 Type: | Male NPT |
| Shape: | Straight |
| Connection 1 Size: | 3/4"-16 inch |
| Connection 2 Size: | 3/8"-18 inch |
| Overall Length: | 1.73 inch, 43.94 mm |
| Hex Size: | 0.75 inch, 19.05 mm |
| Maximum Operating Pressure: | 15000 psi, 103 MPa |
| Width: | n/a |
| Height: | n/a |
| Connection 2 Thread Size: | 3/8"-18 NPT |
