ZHLW2 18-1/2-SS
DESCRIPTION:

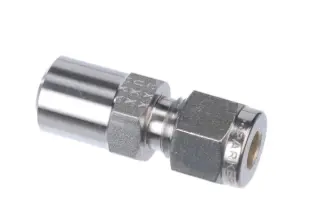

316 Stainless Steel Parker Tube Fitting to Automatic Tube Butt Weld Connector, 18 MM OD to 1/2 Buttweld Pipe
TECHNICAL DESCRIPTION:
| Pipe Outside Diameter: | 1/2" |
| Tube Outside Diameter: | 18 mm (O.D.) |
| Materials of Construction: | Stainless Steel AISI 316 |
| Brand: | A-LOK |
| Product Type: | Compression Fittings |
| Configuration: | Tube to Welded System |
| Product Style: | Buttweld Connector |
| Shape: | Straight |
| Maximum Operating Pressure: | 380 bar |
| Minimum Operating Temperature: | -255 °C |
| Maximum Operating Temperature: | 649 °C |
| For Fluid Type: | Liquid, Gases |
| Length: | 50.5 mm |
| Technology: | Process Control |
| Application: | Instrumentation, Offshore Control Panels, Sensing Lines |
| Industry: | Instrumentation, Offshore Control Panels, Sensing Lines |
| Division: | Instrumentation Products Division |
